ZF 10 M (HBW 100)

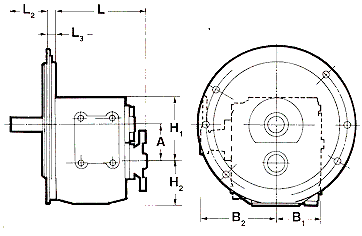

INSTALLATION DIMENSIONS

Dim. A B1 B2 H1 H2 L L2 L3(B/W)
mm 62 75 125 73 110 180 60 15
inches 2.44 2.95 4.92 2.87 4.33 7.09 2.36 0.59
.
