ZF 12 M (HBW 125)

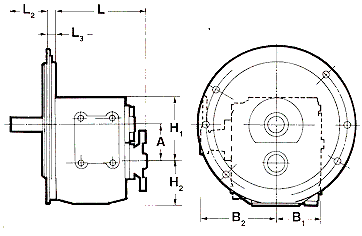

INSTALLATION DIMENSIONS

Dim. A B1 B2 H1 H2 L2 L3(B/W)
mm 72 80.5 130 83 125 60 15
inches 2.83 3.17 5.12 3.27 4.92 2.36 0.59
.
