ZF 220 V (IRM 220 V-2)

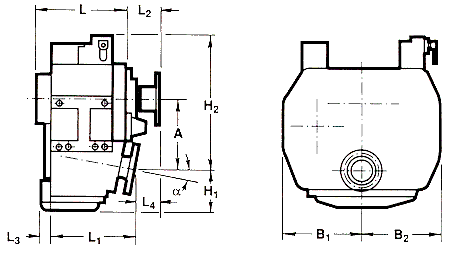

INSTALLATION DIMENSIONS

Dim. A B1 B2 H1 H2 L L1 L2 L4 a
mm 144.5 187.5 187.5 115.5 231 250 246.4 105 104 10°
inches 5.69 7.38 7.38 4.55 9.09 9.84 9.70 4.13 4.08 10°
.
