ZF 280 IV (IRM 280 V-LD-1)

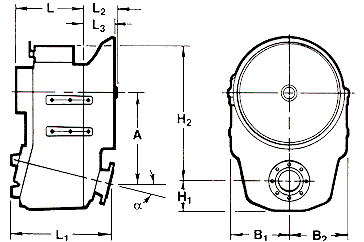

INSTALLATION DIMENSIONS

Dim. A B1 B2 H1 H2 L L1 L2 L3 (SAE 3) a
mm 330.8 184 184 90 501 395 286 59 34.5 14°
inches 13.02 7.24 7.24 3.54 19.72 15.55 11.26 2.33 1.36 14°
.
