ZF 301 A (IRM 301 A-2)

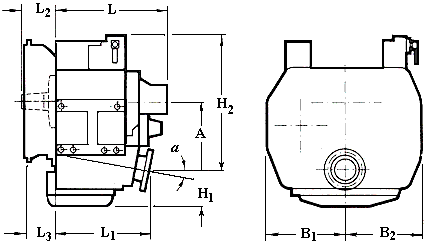

INSTALLATION DIMENSIONS

Dim. A B1 B2 H1 H2 L L1 L2 L3 (SAE 2) a
mm 55.9 235 235 167 295 484 324 88 34.5 10°
inches 2.20 9.25 9.25 6.57 11.61 19.06 12.76 3.46 1.36 10°
.
