ZF 301 C (IRM 301 PL-2)

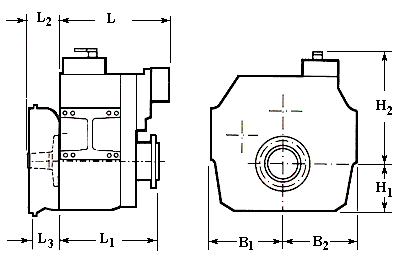

INSTALLATION DIMENSIONS

Dim. B1 B2 H1 H2 L L1 L2 L3 (SAE 2)
mm 235 235 200 270 480 344 89.3 80
inches 9.25 9.25 7.87 10.63 18.90 13.54 3.52 3.15
.
