ZF 302 IV (IRM 302 V-LD-1)

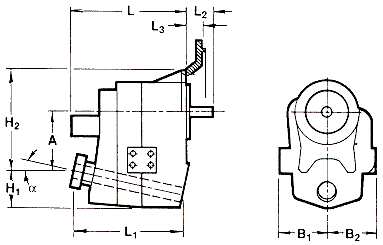

INSTALLATION DIMENSIONS

Dim. A B1 B2 H1 H2 L L1 L2 L3 (SAE 1) a
mm 270.1 254 254 164 440 467 302 73 50 15°
inches 10.63 10.00 10.00 6.45 17.32 18.39 11.88 2.85 1.95 15°
.
