ZF 63 IV (HSW 630 V1)

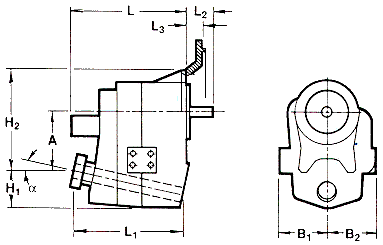

INSTALLATION DIMENSIONS

Dim. A B1 B2 H1 H2 L L1 L2 L3 a
mm 219.2 178 178 106.8 355 323 326 65 11 12°
inches 8.63 6.99 6.99 4.20 13.98 12.72 12.81 2.56 0.43 12°
.
