Hurth Marine Gear

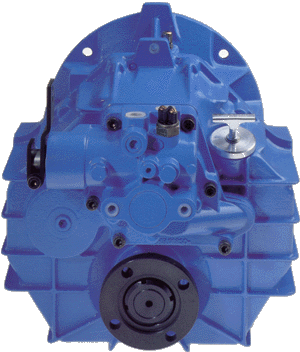

HSW 450 A2

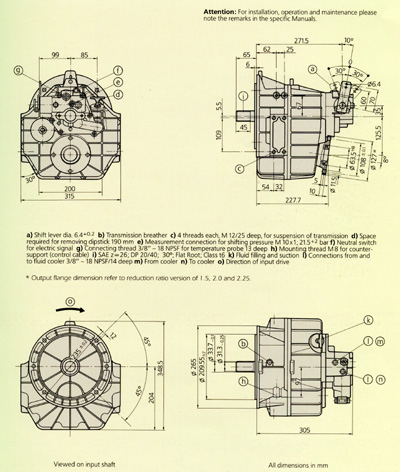

Hurth HSW 450 A2 Marine TransmissionHurth 450 Specifications - Click to Expand

Technical Data HSW 450 A 1.25 1.5 2.0
Shifting Position 'A' Ratio 1.26:1 1.51:1 2.03:1
Shifting Position 'B' Ratio 1.26:1 1.51:1 2.03:1
Power Input Max.
Pleasure @ 2800 rpm
Medium @ 2800 rpm
Continuous @ 2300 rpm
HP/kW
HP/kW
HP/kW
176/130
145/106
106/78
176/130
145/106
106/78
176/130
145/106
106/78
Input Torque Max.
Pleasure
Medium
Continuous
ft. lbs./Nm
ft. lbs./Nm
ft. lbs./Nm
332/450
265/360
240/325
332/450
265/360
240/325
332/450
265/360
240/325
Input Speed Max. rpm 5500 5500 5500
Shifting Pressure/Lube Oil Pressure bar 21.5/1.5 21.5/1.5 21.5/1.5
Weight Without Fluid lbs./kg 62/28 62/28 62/28
Fluid Capacity US qts./ Liters 2.13/2.0 2.13/2.0 2.13/2.0
Fluid Grade ATF

Special Features

Special Features Advantages
Aluminum Housing Low Weight
Down Angle Drive Horizontal Engine Mounting for Minimum Space Requirement
Case-Hardened Super-Finished Helical Gears High Efficiency, Low Noise
Compact Design Little Mounting Space Required
Fine Mesh Filter in Suction Line High Operating Safety
Unified Connections for Input and Output Easy Exchange
Low Pressure Cooling Oil Circuit High Reliability of Cooler and Piping
