Hurth Marine Gear

HSW 800 A1

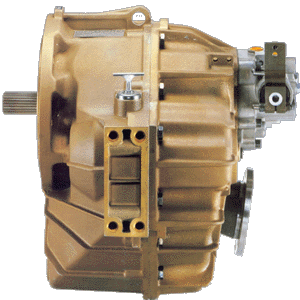

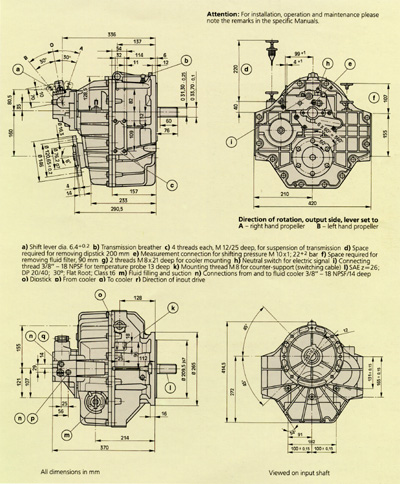

Hurth HSW 800 A2 Marine TransmissionHurth HSW 800 A1 Specifications - Click to Expand

Model Technical Data HSW 800 A1

1.2

1.4

1.6

2.0

2.5

2.85
Shifting Position 'A' Ratio 1.20:1 1.41:1 1.57:1 1.96:1 2.50:1 2.85:1
Shifting Position 'B' Ratio 1.20:1 1.41:1 1.57:1 1.96:1 2.50:1 2.85:1
Power Input Max.
Pleasure @ 2800 rpm
Medium @ 2800 rpm
Continuous @ 2300 rpm
HP/kW
HP/kW
HP/kW
506/377
398/297
354/264
506/377
398/297
354/264
506/377
398/297
354/264
506/377
398/297
354/264
477/356
375/280
337/251
449/335
354/264
314/234
Input Torque Max.
Pleasure
Medium
Continuous
ft. lbs./Nm
ft. lbs./Nm
ft. lbs./Nm
900/664
524/710
417/566
900/664
524/710
417/566
900/664
524/710
417/566
900/664
524/710
417/566
627/850
494/670
417/566
590/800
630/465
417/566
Input Speed Max. rpm 4200 4200 4200 4200 4200 4200
Weight Without Fluid lbs./kg 141/64 141/64 141/64 141/64 141/64 141/64
Fluid Capacity US gal./ Liters 1.5/5.5 1.5/5.5 1.5/5.5 1.5/5.5 1.5/5.5 1.5/5.5
Fluid Grade ATF

Special Features

Special Features Advantages
Aluminum Housing Low Weight
Down Angle Drive Horizontal Engine Mounting for Minimum Space Requirement
Full Power Transfer and Same Transmission Ratios in Both Shifting Positions Same Transmissions in Twin Installations
Case-Hardened Super-Finished Helical Gears High Efficiency, Low Noise
Compact Design Little Mounting Space Required
Fine Mesh Filter in Suction Line High Operating Safety
Unified Connections for Input and Output Easy Exchange
