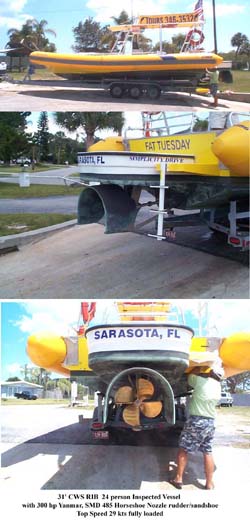

31' Commercial Water Sport
USCG Inspected 24 passenger Rib
Simplicity Drive Model SMD 485 Horseshoe
Rudder
300 hp Yanmar Diesel
ZF 63A, 2.5:1 ratio
24" X 20" 4 blade
Top Speed fully loaded 29 kts Cruise 25kts
5.5 gph at cruise
 |
|
50' Thunder Power Boat
- 36 Passenger
- Simplicity Drive Model SMD 500
- Twin Caterpillar 3126, 420 hp
- Twin Disc MG-5061A 1.75:1
- 26" X 30" 4 blade
- Top speed 56 mph light load 16,000 lbs.
- 40 mph cruise full load 22,300 lbs
|
|

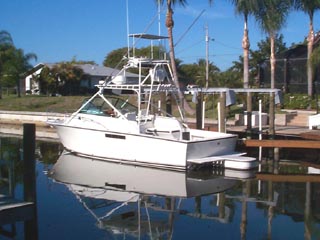

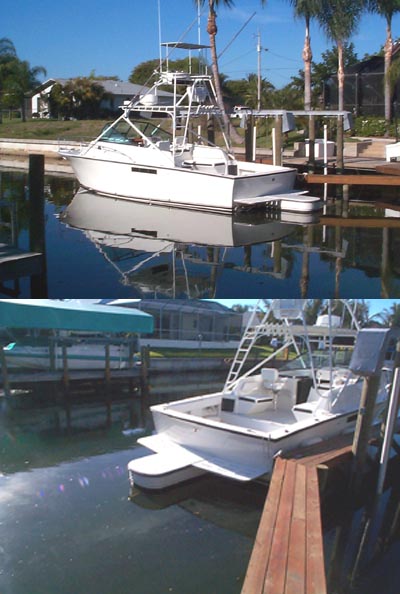

31" Baja
- Simplicity Drives Model SMD 475
- Single GM 6-71TA, 400 hp @2300 rpm
- Twin Disc MG 507A, 1.5:1
- 24" X 22" 4 blade
- Operational Weight 16,500 lbs.
- Top speed 34 mph Cruise 27 mph
|
 |
|

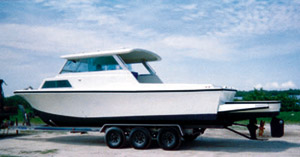

26' Stamas
-
Weight 8,000 lbs.
-
Simplicity Drive Model SMD 400
-
Yanmar 250 hp., Hurth 630A, 2.52:1 Ratio
-
21" X 21" 4 blade Top Speed 31 mph
|
  |
