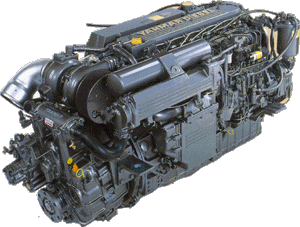

| Model |
6LY-UTE |
| Configuration |
4 Stroke, Vertical, Water Cooled Diesel Engine |
| Number of Cylinders |
6 In-line |
| Bore x Stroke |
3.94" x 4.33" (100mm x 110mm) |
| Displacement |
316" (5.184 L) |
| Continuous Rating Output at Flywheel |
260 HP/3100 rpm
(191.2 kW/3100 rpm) |
| Maximum Output at Flywheel |
315 HP/3300 rpm
(231.7kW/3300 rpm) |
| Combustion System |
Direct Injection |
| Aspiration |
Turbocharged with Intercooler |
| Starting System |
Electric Starting
(DC 12V, 2.5kW Starting Motor/12V 80A AC Generator) |
| Cooling System |
Fresh Water Cooling by Centrifugal Fresh-Water Pump and
Rubber Impeller Seawater Pump |
| Lubrication System |
Forced Lubrication with Gear Pump |
| Rotation |
Counter Clockwise (Viewed from Stern) |
| Dry Weight |
1307 lbs. (593 kg) |
