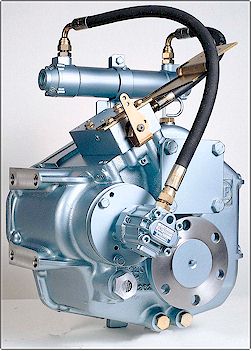

ZF Marine ZF 280 (IRM 280 PL-1)
ZF Marine ZF 280 (IRM 280 PL-1) Technical SpecificationsZF Marine ZF 280 (IRM 280 PL-1) Dimensions and CAD Drawings
DESCRIPTION
  • Reverse reduction marine transmission with hydraulically actuated multi-disc clutches
  • Suitable for high performance applications in luxury motor yachts, sport fishers, express cruisers etc.
  • Robust design also withstands continuous duty in workboat applications
  • Fully works tested, reliable and simple to install
  • Compatible with all types of engines and propulsion systems, including water-jets and surface-piercing propellers, as applicable
  • Design, manufacture and quality control standards comply with ISO 9001
MAIN FEATURES
  • Lightweight and robust aluminium alloy casing (sea water resistant)
  • Case hardened and precisely ground gear teeth for long life and smooth running
  • Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead
  • Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable
  • Suitable for twin engine installation (same ratio and torque capacity in ahead or astern mode)
OPTIONAL EXTRAS

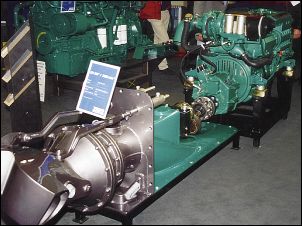

IRM 280 PL GEAR ATTACHED TO A VOLVO PENTA TAMD 73 WJ (SPECIAL LIGHT DUTY COMMERCIAL RATING 331 kW / 2600 rpm). THE GEAR IS SHOWN INSTALLED IN THE NEW VP WATERJET PROPULSION SYSTEM WITH KaMeWa JET.

  • Oil cooler complete with fittings and flexible oil hoses
  • Engine-matched torsional coupling
  • Mounting brackets
  • Trolling valve for slow-speed drive
  • Propeller shaft flange and coupling bolt sets
  • SAE 2 and SAE 3 bell housings
  • PTO (live)
  • Electric clutch control (12 or 24 VDC)
  • Classification by all major Classification Societies on request
