ZF 280 (IRM 280 PL-1)

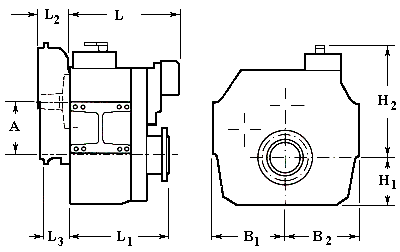

INSTALLATION DIMENSIONS

Dim. A B1 B2 H1 H2 L L1 L2 L3 (SAE 2)
mm 146 230 175 131 270 394 299 72 34.5
inches 5.75 9.06 6.89 5.16 10.63 15.51 11.77 2.83 1.36
.
